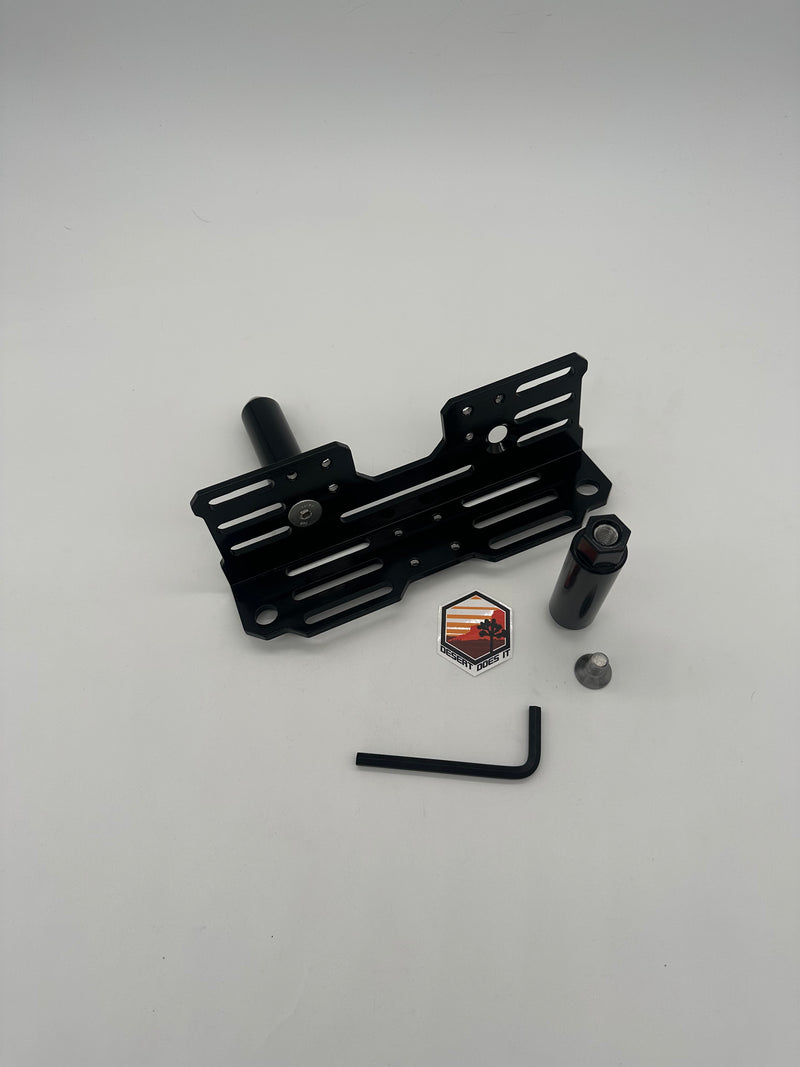

SPARE TIRE MOLLE (2018+ JEEP WRANGLER JL, JLU) — Install Guide

Important Note

To help prevent cross-threading during installation, verify bolts and threads by taking the applicable bolts and threading them into the corresponding holes by hand. Do not force the bolts.

Step 1 — Install the Threaded Spacers

1. Using your lug wrench, remove one lug nut at a time.
2. Replace the removed lug nut with one of the provided threaded spacers and tighten it securely.
3. Repeat these steps with the second upper lug nut.

Important: There are three lug nuts that hold the spare tire on. You will be removing the two upper lug nuts. These lug nuts will not be reused while the panel is installed, but do not throw them away. Keep them in a secure location in case you ever decide to remove the panel.

Step 2 — Install the Panel

1. Using the two provided stainless-steel bolts, attach the panel to the threaded spacers through the two countersunk holes in the panel.
2. Mount the panel vertically against the tire, with the countersunk holes at the bottom.

Final Check

• Verify both threaded spacers are securely installed.
• Confirm the panel is mounted vertically with the countersunk holes at the bottom.
• Make sure both stainless-steel bolts are securely tightened.

Desertdoesit.com - Check bolt torque at regular intervals and don’t forget to post a review.
