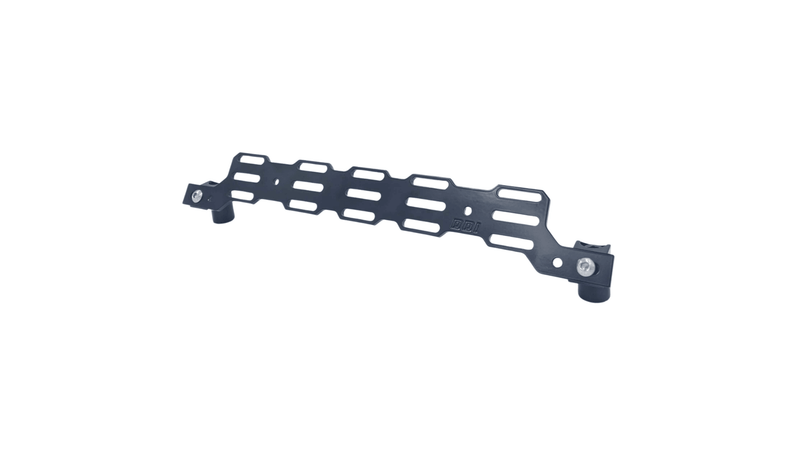

Subaru Front Multi Mount Panel (2013+ Crosstrek / 2014+ Forester / 2015+ Outback / 2015+ WRX / 2017+ Impreza)

INSTALL INFO

FITS

2013 - 2023 Subaru Crosstrek
2014 - 2024 Subaru Forester
2010 - 2024 Subaru Outback
2015 - 2023 Subaru WRX
2017 - 2023 Subaru Impreza

DIFFICULTY

Tools Needed

Ratchet and 12mm or 14mm Socket
5mm and 8mm Allen Key and Socket
Torque Wrench

Included Parts

2 - M8 x 16mm - Button Head Bolts
2 - M10 1.25 x 30mm - Socket Head Bolts
2 - MMP Brackets
1 - MMP
Blue Loctite

IMPORTANT NOTES

Desert Does It will not be liable for any loss, damage, or injury directly or indirectly from the use or the inability to determine the use of these products. Before using or installing, the user shall determine the suitability of the products for its intended use, and the user shall assume all responsibility and risk in connection therewith. Any modifications to your vehicle are done at your own risk.

INSTALLATION INSTRUCTIONS

General Note: To help prevent cross threading during installation, we recommend verifying bolts and threads by taking the applicable bolts and threading them in by hand to the corresponding hole.

Step One: When applicable, remove bolt trim pieces at the seat base with a pry tool or screwdriver.
Step Two: Slide the seat all the way back and remove both front factory seat base bolts (See Tools Needed above).
Step Three: With the STAINLESS STEEL
hardware, loosely mount the panel to the MMP brackets.
Step Four: With blue Loctite, thread the two new BLACK socket head bolts through each MMP Bracket through the seat rail and into the threaded hole in the floor. The BLACK socket head bolts only need to be hand tightened at this time.
Step Five: Align panel and torque the two socket head bolts to 30ft-lbs and the two stainless steel bolts to 15ft-lbs.
