Important Note

To help prevent cross-threading during installation, verify bolts and threads by taking the applicable bolts and threading them into the corresponding holes by hand. Do not force the bolts.

Step 1 — Install the Lower Bolt

1. Locate the two threaded holes on the top side of the roll bar.

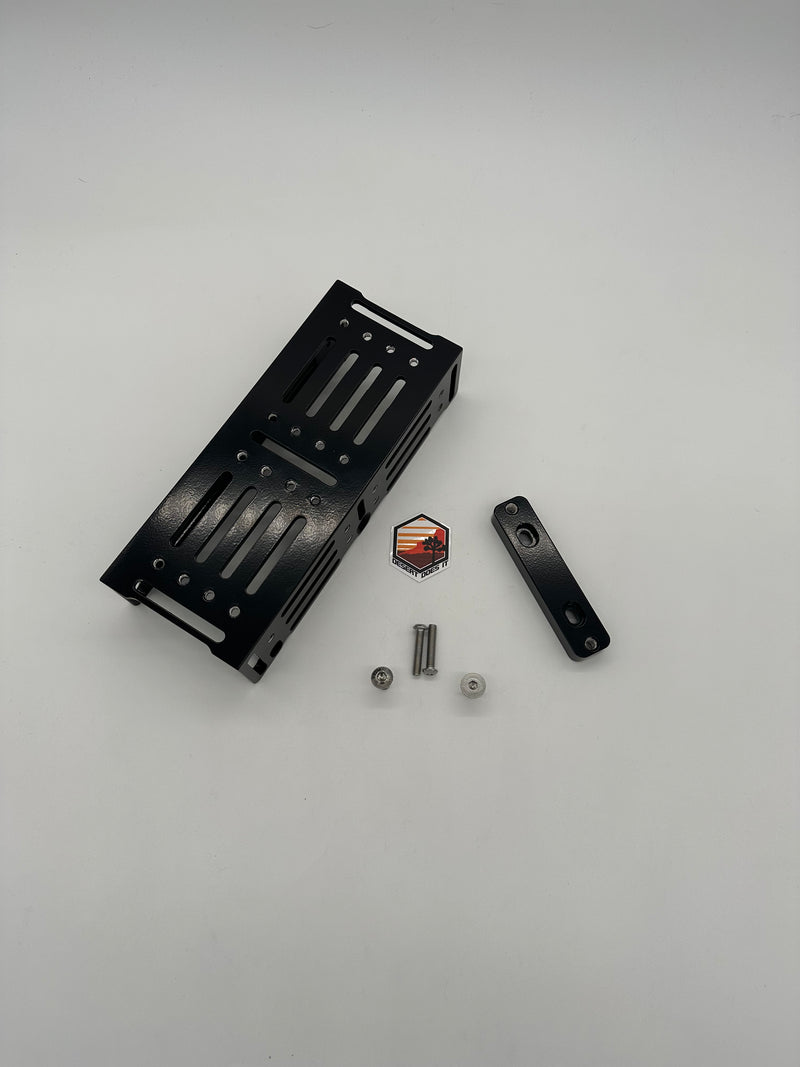

2. Using Blue Loctite, insert the provided 5mm Flat Head Bolt through the middle countersunk hole in the MMP.
3. Thread the bolt into the lower threaded insert on the roll bar.
4. Finger-tighten the bolt to get it started.

Step 2 — Install the Upper Bolt

1. Take the provided 5mm Cap Head Bolt and thread it into the upper threaded hole on the roll bar.
2. Finger-tighten the bolt to get it started.
3. Using your Allen key, tighten both bolts securely.

Installation Note: The MMP can be installed on either side of the roll bar and can face either the cargo side or window side.

Final Check

• Verify both bolts are properly started and threaded.
• Confirm the MMP is positioned correctly on the roll bar.
• Make sure both bolts are securely tightened.

Desertdoesit.com - Check bolt torque at regular intervals and don’t forget to post a review.
