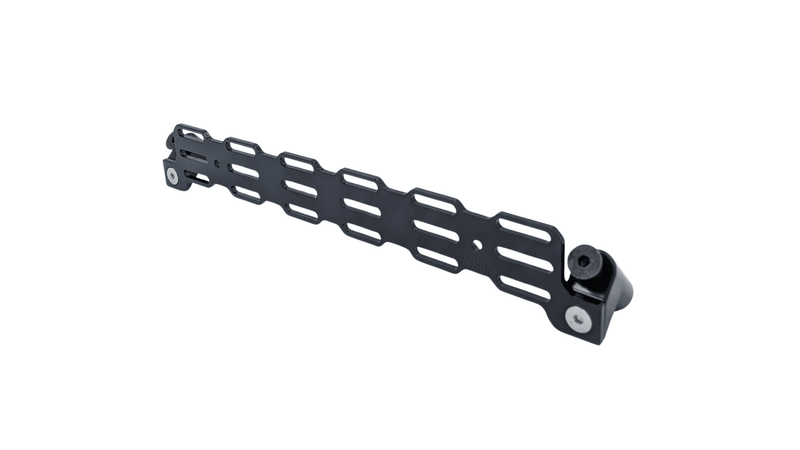

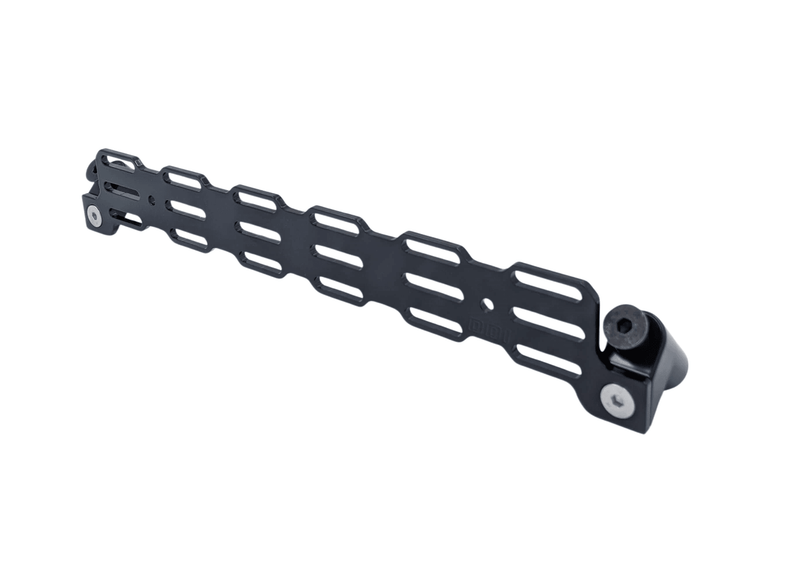

Jeep / RAM Multi Mount Panel (2011 - 2021 Jeep Grand Cherokee / 2019 - 2024 RAM 1500 / Dodge Durango 2011 - 2024)

INSTALL INFO

FITS

  • 2019 - 2024 RAM 1500
  • 2011 - 2021 Jeep Grand Cherokee
  • 2011 - 2024 Dodge Durango

DIFFICULTY

Tools Needed

  • Depending on Model and Year, you will need:
    • Ratchet with 15mm Socket
    • Ratchet with T50 Torx
    • Ratchet with E12 E-Torx Socket
  • 5mm and 6mm Ball-End Allen Key or Socket
  • Blue Loctite
  • Torque Wrench

Included Parts

  • 2 - M8 1.25 x 16mm Flathead Bolts - SS
  • 2 - M10 1.5 x 70mm Flathead Bolts - Black
  • 2 - Brackets
  • 1 - MMP

IMPORTANT NOTES

Desert Does It will not be liable for any loss, damage, or injury directly or indirectly from the use or the inability to determine the use of these products. Before using or installing, the user shall determine the suitability of the products for its intended use, and the user shall assume all responsibility and risk in connection therewith. Any modifications to your vehicle are done at your own risk.

INSTALLATION INSTRUCTIONS

General Note: To help prevent cross threading during installation, we recommend verifying bolts and threads by taking the applicable bolts and threading them in by hand to the corresponding hole.



  1. Step One: When applicable, remove bolt trim pieces at the seat base with a pry tool or screwdriver. If desired, use a step bit or 1” hole saw to drill out holes in plastic trim to allow the MMP brackets to go through.
  2. Step Two: Slide the seat all the way back and remove both front factory seat base bolts (See Tools Needed above).
  3. Step Three: With blue Loctite, thread the two new BLACK flathead bolts through each new MMP Bracket, through the seat rail and into the threaded hole in the floor. Roughly align the flat face of the brackets so they are facing forward. The BLACK flathead bolts only need to be hand tightened at this time.
  4. Step Four: Take the Multi Mount Panel with the two new STAINLESS STEEL flathead bolts and mount the panel to the MMP Brackets. Hand tighten only.
  5. Step Five: Align panel and torque the two black flathead bolts to 25ft-lbs and the two stainless steel flathead bolts to 15ft-lbs.
