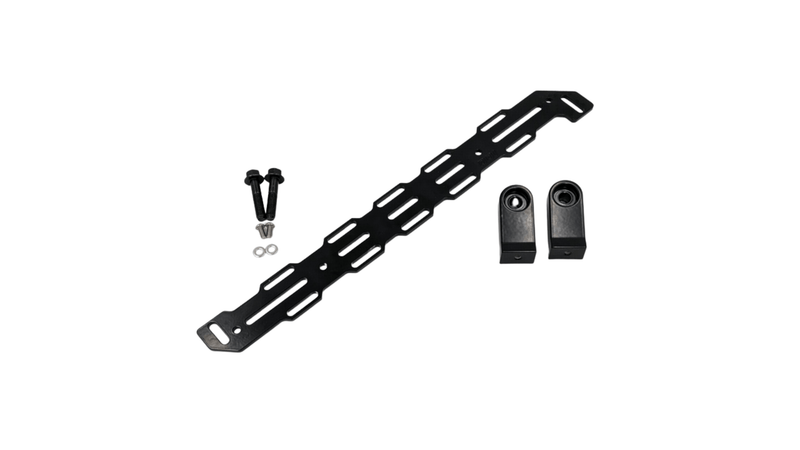

Toyota Multi Mount Panel (2008-2021 Land Cruiser / 2008-2021 Lexus LX570) — Install Guide

Important Notes

• Prior to beginning this or any installation, read these instructions to familiarize yourself with the required steps and evaluate whether you are experienced and capable of personally performing these modifications.
• To help prevent cross-threading during installation, verify bolts and threads by taking the applicable bolts and threading them into the corresponding holes by hand. Do not force the bolts.

Step 1 — Remove Trim

1. Remove the trim pieces at the seat base.

Step 2 — Remove the Factory Bolts

1. Remove both front factory seat base bolts using a 14mm wrench/socket.

Step 3 — Loosely Install the Panel

1. Using the supplied 12mm stainless steel hardware, loosely mount the panel to the MMP brackets.

Step 4 — Install the MMP Brackets

1. Apply Blue Loctite to the two new flange bolts.
2. Thread the flange bolts through each MMP Bracket and into the seat base.
3. Hand-tighten only at this time.

Step 5 — Align and Torque

1. Align the panel.
2. Torque the flange bolts to 27ft-lbs.
3. Torque the two stainless steel flathead bolts to 15ft-lbs.

Final Check

• Verify all hardware is properly installed and torqued.
• Confirm the MMP brackets are securely mounted to the seat base.
• Confirm the panel is properly aligned and secure.

Desertdoesit.com - Check bolt torque at regular intervals and don’t forget to post a review.
