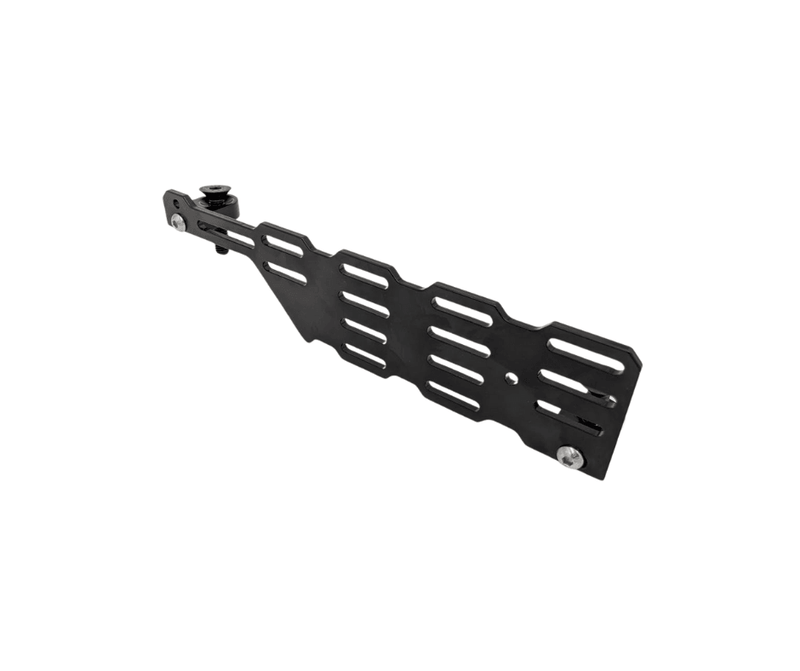

Jeep Front Multi Mount Panel (2007-2018 Wrangler JKU)

INSTALL INFO

FITS

2007-2018 Jeep Wrangler JKU

DIFFICULTY

Tools Needed

1/2" Ratchet with 18mm wrench/socket
8mm and 5mm allen key or allen socket
Torque wrench

Included Parts

2 - M8 x 16mm - Button Head - SS
2 - M12 1.75 x 50mm - Flathead - Blk
2 - Brackets - (Sku 4302)
1 - MMP (Sku 4301)

Blue Loctite

IMPORTANT NOTES

Desert Does It will not be liable for any loss, damage, or injury directly or indirectly from the use or the inability to determine the use of these products. Before using or installing, the user shall determine the suitability of the products for its intended use, and the user shall assume all responsibility and risk in connection therewith. Any modifications to your vehicle are done at your own risk.

INSTALLATION INSTRUCTIONS

General Note: To help prevent cross threading during installation, we recommend verifying bolts and threads by taking the applicable bolts and threading them in by hand to the corresponding hole.

Step One: Slide the seat all the way back and remove both front factory seat base bolts.
Step Two: Place MMP Bracket with integrated spacer on the hole nearest the transmission tunnel and the flat MMP Bracket on the hole nearest the door.
Step Three: With blue loctite, thread the two new BLACK flathead bolts through each new MMP Bracket, through the seat frame and into the threaded hole in the floor. The BLACK flathead bolts only need to be hand tightened at this time.
Step Four: Take the new Panel with the two new STAINLESS STEEL button head bolts and mount the panel to the MMP Brackets. The thin part of the panel is mounted to the bracket nearest the transmission tunnel. Hand tighten only.
Step Five: Align panel and torque the two BLACK flathead bolts to 55ft-lbs and the two STAINLESS STEEL flathead bolts to 15ft-lbs.
