Ford / Jeep Adjustable Seat Jackers (2009-2014 Ford F150 / 2007-2018 Jeep Wrangler JK/JKU)

INSTALL INFO

FITS

2007-2018 Jeep JK/JKU
2009-2014 Ford F150

DIFFICULTY

Tools Needed

18mm and 16mm Socket
Torque Wrench

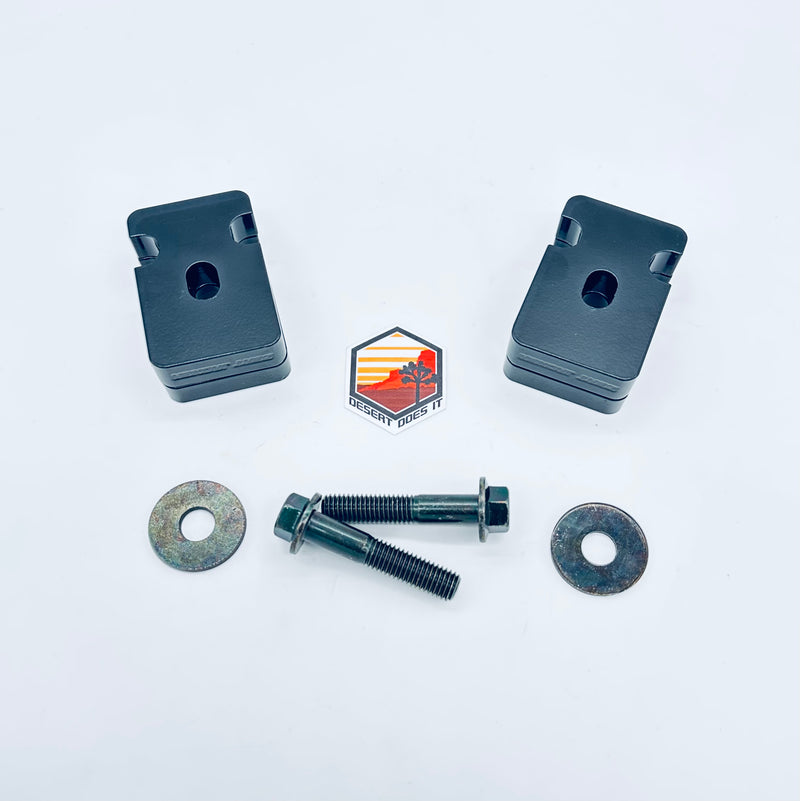

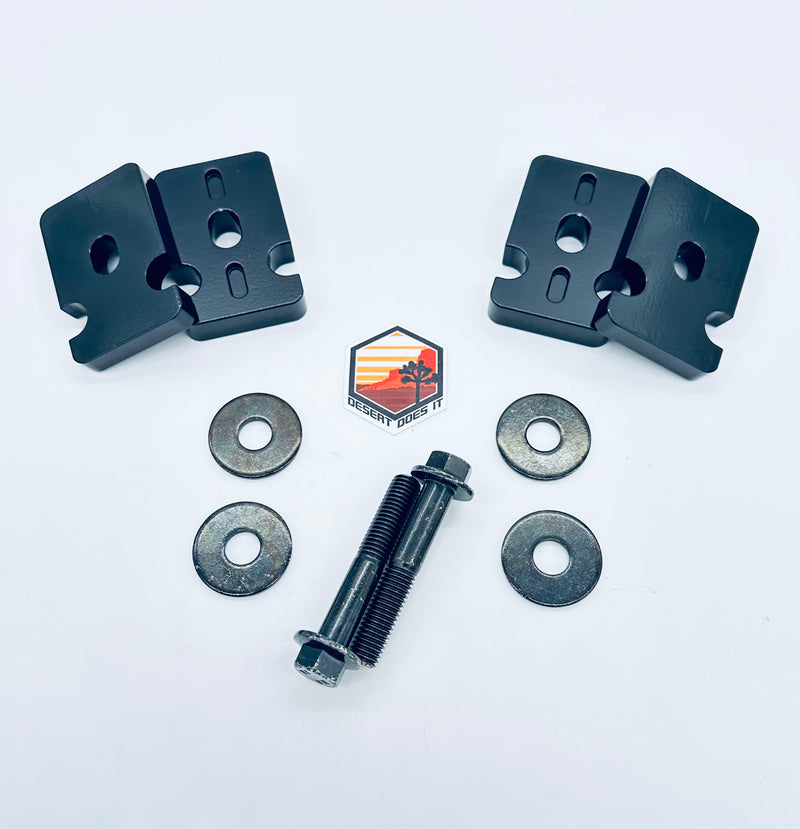

Included Parts

2 - M12 1.75 x 60mm Flange Bolts
4 - Seat Jacker Shims With Outdents
2 - Seat Jackers With Through Holes
Blue Loctite

IMPORTANT NOTES

Desert Does It will not be liable for any loss, damage, or injury directly or indirectly from the use or the inability to determine the use of these products. Before using or installing, the user shall determine the suitability of the products for its intended use, and the user shall assume all responsibility and risk in connection therewith. Any modifications to your vehicle are done at your own risk.

INSTALLATION INSTRUCTIONS

General Note: To help prevent cross threading during installation, we recommend verifying bolts and threads by taking the applicable bolts and threading them in by hand to the corresponding hole.

Step One: Remove any plastic trim at the feet of your seat. Remove both front factory seat base bolts and loosen the two rear seat bolts but do not remove them.
Step Two: Lift the front seat by pushing back on the headrest or by asking a helper to pull from the back seat.

One shim: If installing one Seat Jacker shim, use the shim with the through holes on it.
Two shims: If installing two Seat Jacker shims use one of the shims with an outdent and the one with a through hole.
Three shims: If using all three Seat Jacker shims, the two with outdents will be on the top and bottom.

Step Four: If using one shim per leg, use the factory bolt to bolt the seat down. If using two or three shims, use the provided 60mm Flange Bolt.
*IMPORTANT – IF THE SEAT RAIL HOLE DOES NOT LINE UP, LIFT UP THE SEAT RAIL .25 INCHES AND THREAD IN THE BOLT A COUPLE OF THREADS. IF NEEDED ADJUST THE SEAT RAILS ONE AT A TIME TO GET THEM TO LINE UP.
Step Five: Torque front bolts and rear bolts to 75ft-lbs.
