Seat Jackers Installation Instructions

Before You Start

• Tools needed: T50 Torx bit or 14mm socket, ratchet
• A helper is recommended for lifting the seat

IMPORTANT:
To help prevent cross-threading, always start bolts by hand and make sure they thread smoothly before tightening.

Step 1 — Remove Rear Bolts

• Remove any plastic trim at the base of the seat.
• Remove both rear factory seat bolts using a T50 Torx bit or 14mm socket.
• Loosen the front seat bolts, but do not remove them unless needed to move the seat forward.

Step 2 — Lift the Seat

• Lift the rear of the seat by pushing forward on the headrest.
• Or have a helper gently lift or pull the seat backward.

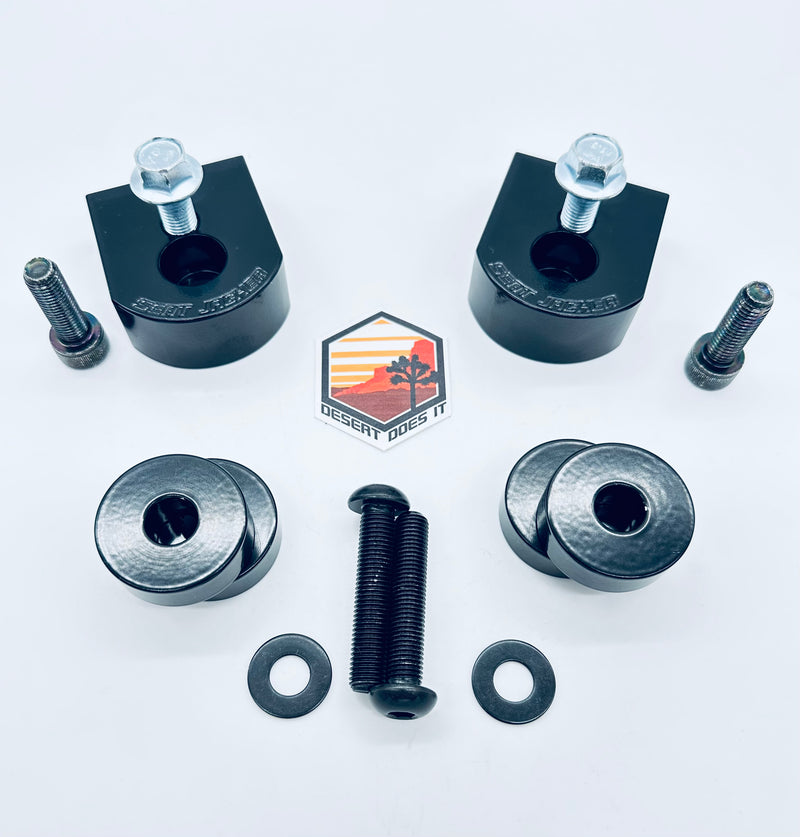

Step 3 — Install Spacers

• Place the desired number of spacers under the rear of the seat.
• Position the spacers between the seat rails and the floor.

Step 4 — Attach Rear Seat Legs

• Install the provided 50mm bolts through the seat rails and into the floor. Use washers if required.
• Start all bolts by hand before tightening.

IMPORTANT — SEAT RAIL ALIGNMENT

If the holes do not line up:

• Lift the seat rail approximately 1/4 inch.
• Start the bolt a few threads by hand.
• Adjust the seat rails one at a time until everything is properly aligned.
• Do not force or cross-thread the bolts.

Step 5 — Torque Bolts

Torque both the front and rear seat bolts to 27 ft-lbs.

Final Check

• Verify all bolts are properly torqued to specification.
• Confirm the seat is securely mounted.
• Recheck bolt torque after a few days of driving.
