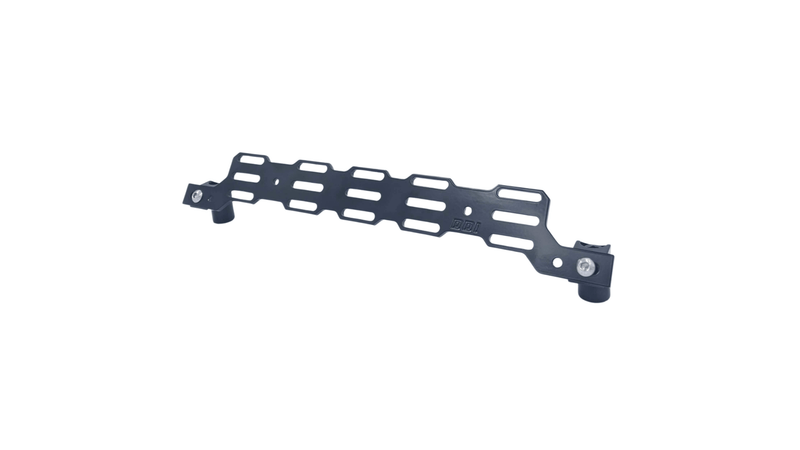

HONDA MMP INSTALLATION INSTRUCTIONS — Install Guide

Important Note

To help prevent cross-threading during installation, verify bolts and threads by taking the applicable bolts and threading them into the corresponding holes by hand. Do not force the bolts.

Step 1 — Remove Bolt Trim

1. When applicable, remove the bolt trim pieces at the seat base using a pry tool or screwdriver.

Step 2 — Move the Seat

1. Slide the seat all the way back.
2. Remove both front factory seat base bolts using the appropriate tool.

Step 3 — Attach the MMP

1. Using the stainless steel hardware, loosely mount the panel to the MMP brackets.

Step 4 — Install the MMP Brackets

1. Apply Blue Loctite to the two new black socket-head bolts.
2. Thread the black socket-head bolts through each MMP bracket, through the seat rail, and into the threaded holes in the floor.
3. Hand-tighten the black socket-head bolts only at this time.

Step 5 — Align and Torque

1. Align the panel as needed.
2. Torque the two black socket-head bolts to 30 ft-lbs.
3. Torque the two stainless steel bolts to 15 ft-lbs.

Final Check

• Verify all four bolts are properly installed and torqued.
• Confirm the MMP panel is properly aligned and secure.
