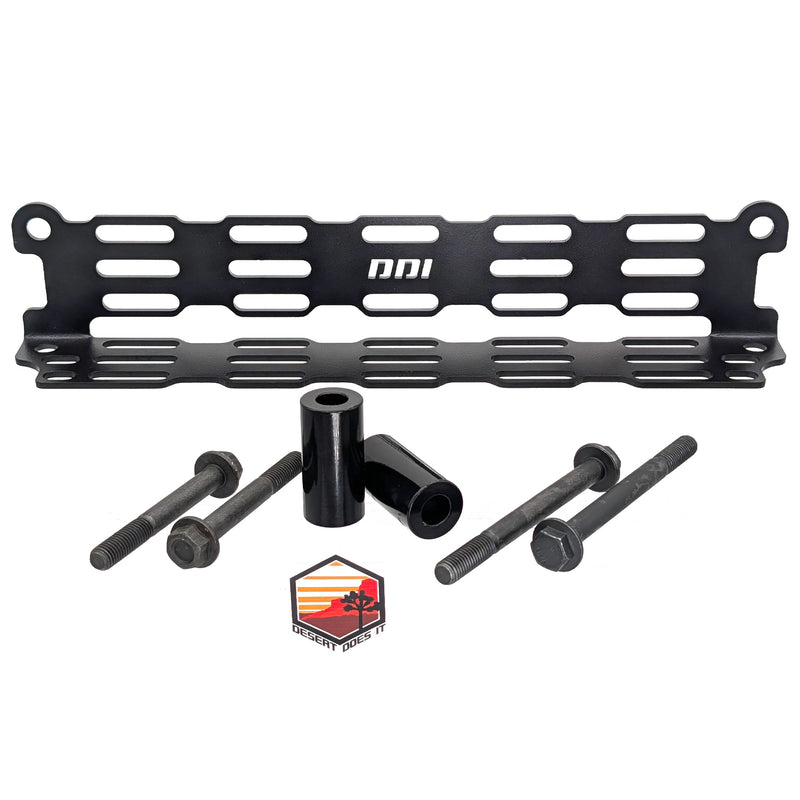

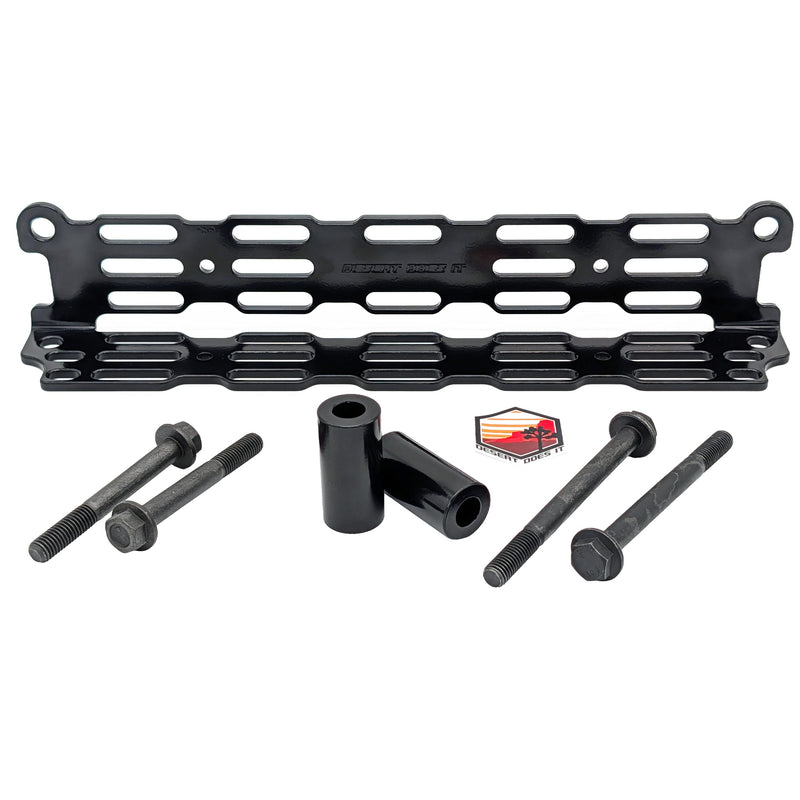

Ford Reversible Multi Mount Panel — Install Guide

Important Note

To help prevent cross-threading during installation, verify all bolts and threaded holes before starting. Thread each applicable bolt into its corresponding hole by hand. Do not force any bolt.

Step One — Remove Seat Trim

Remove the trim pieces at the seat base using a pry tool or screwdriver.

Step Two — Remove Factory Bolts

Slide the seat backward and remove both front factory seat base bolts.

Step Three — Install the MMP

Apply Blue Loctite to the provided 80mm flange-head bolts.

Insert the bolt through the Multi-Mount Panel and spacers, then thread the bolt back into the original factory mounting location.

Panel Orientation: The Multi-Mount Panel can be installed in two different orientations. Reference the installation photos below for the available configurations.

Note: If installing the MMP with Seat Jackers, use the provided 110mm bolts instead of the 80mm bolts.

Step Four — Torque Bolts

Torque the bolts to 35ft-lbs.

Final Check

• Verify the MMP is properly aligned and securely mounted.
• Confirm all bolts are properly threaded and torqued to 35ft-lbs.
• Confirm the seat is securely mounted before operating the vehicle.
