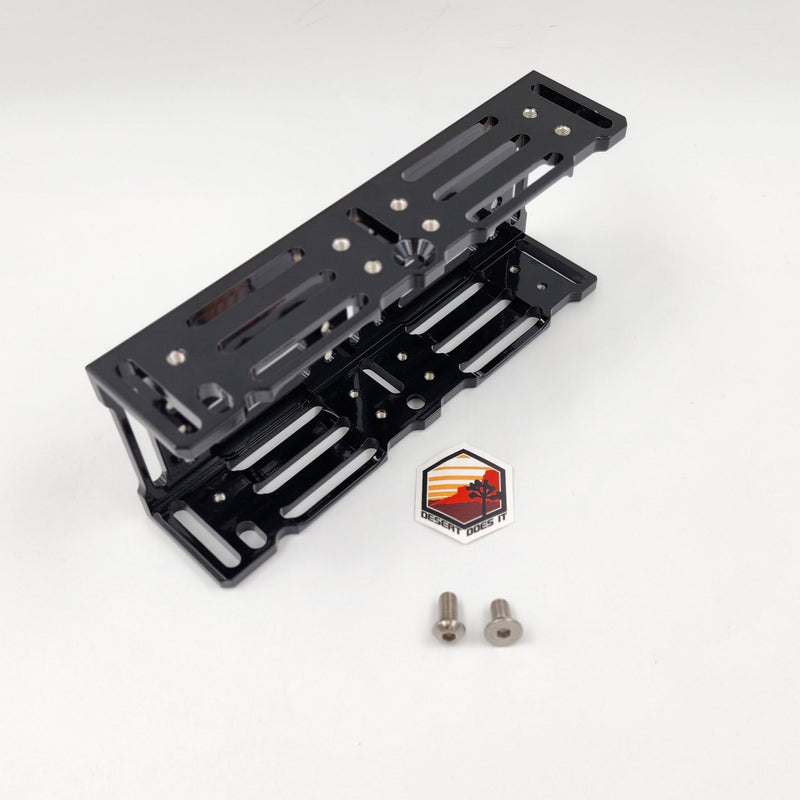

Ford Bronco Triple Molle Installation 2021+ Ford Bronco — Install Guide

Important Note

To help prevent cross-threading during installation, verify bolts and threads by taking the applicable bolts and threading them into the corresponding holes by hand. Do not force the bolts.

Step 1 — Install the Lower Bolt

1. Locate the two threaded holes on the top side of the roll bar.
2. Apply Blue Loctite to the provided 5mm Flat Head bolt.
3. Slide the bolt through the middle countersunk hole in the MMP.
4. Thread the bolt into the lower threaded insert on the roll bar.
5. Finger-tighten to get the bolt started.

Step 2 — Install the Upper Bolt

1. Take the provided 5mm Cap Head bolt and thread it into the upper threaded hole on the roll bar.
2. Finger-tighten to start the bolt.
3. Using your Allen key, tighten both bolts securely.

Note: This panel will work on either side of the roll bar and can face either the cargo side or the window side.

Final Check

• Verify both bolts are properly started and tightened.
• Confirm the MMP is securely mounted to the roll bar.
• Confirm the panel is positioned in the desired direction.

DesertDoesIt.com - Check bolt torque at regular intervals and don’t forget to post a review.
