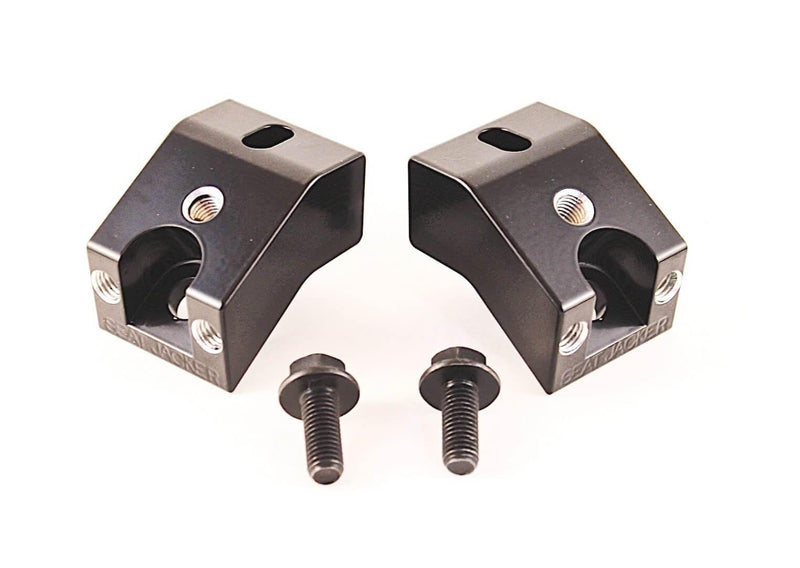

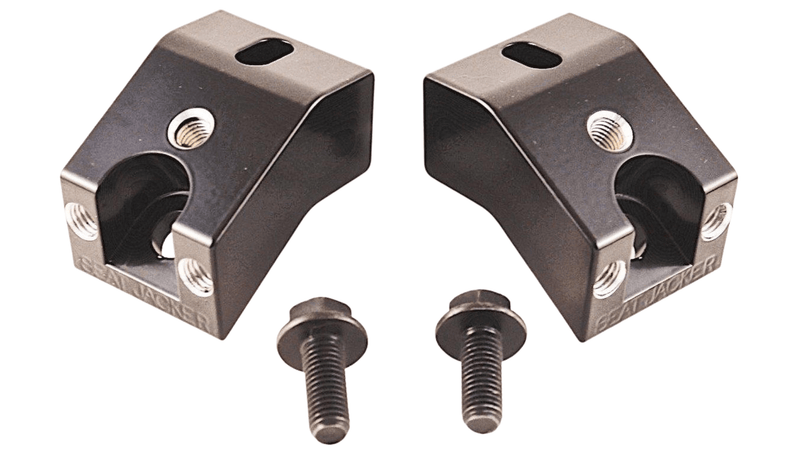

Toyota Front Seat Jackers — Install Guide

Important Note

To help prevent cross-threading during installation, verify all bolts and threads before installation by threading the applicable bolt into the corresponding hole by hand. Do not force any bolt that does not thread smoothly.

• Step 1 — Remove Trim and Front Bolts

  1. Remove any plastic trim around the seat base.
  2. Remove both front factory seat base bolts.
  3. Loosen the two rear seat bolts, but do not remove them.

• Step 2 — Lift the Front of the Seat

  Lift the front of the seat by either:

  • Pushing backward on the headrest, or
  • Having a helper pull the seat backward from the rear seat area.

• Step 3 — Position the Seat Jackers

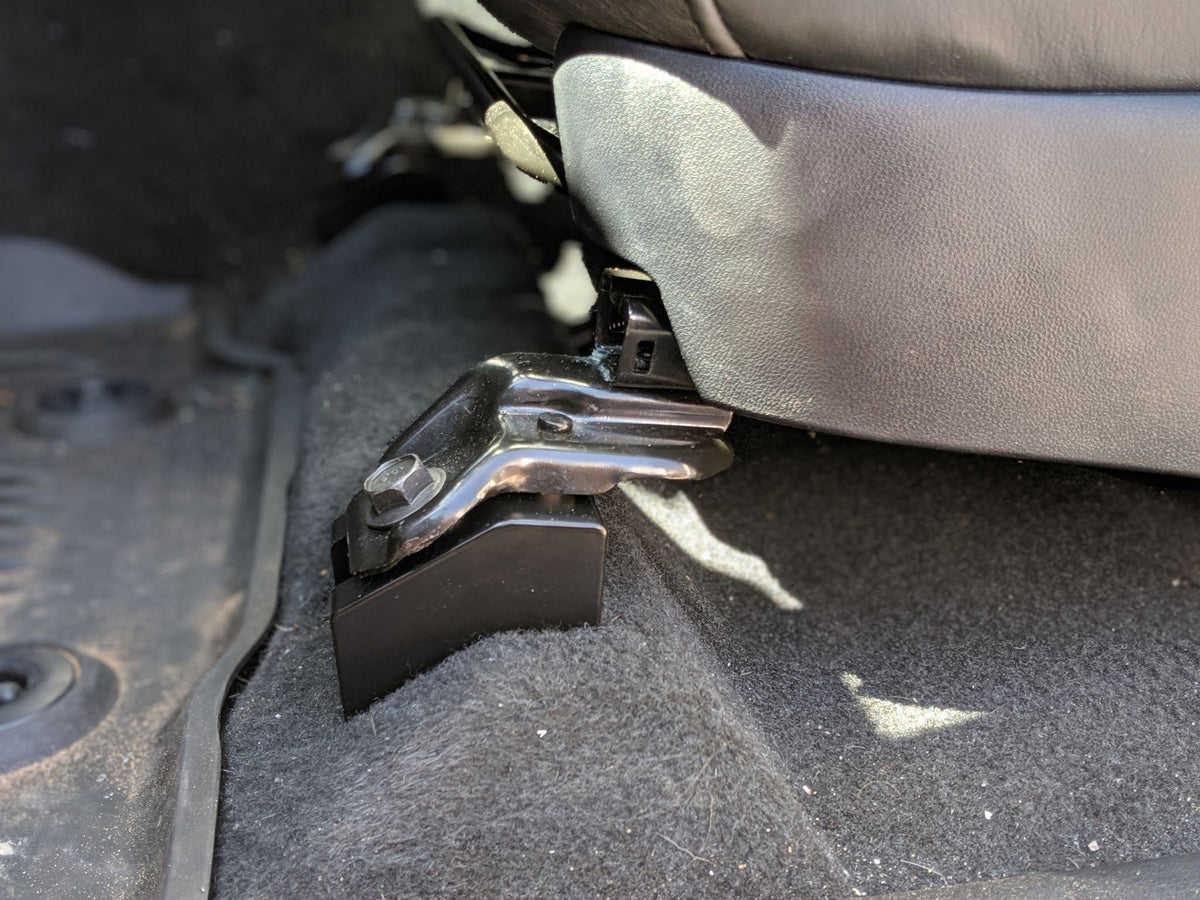

  1. Place the Seat Jackers underneath the front seat mounts.
  2. Make sure the roll pin on each Seat Jacker is properly seated in the corresponding hole in the vehicle floor.

• Step 4 — Secure the Seat Jackers to the Floor

  1. Apply Blue Loctite to the factory M10 fine-thread bolts.
  2. Use the factory M10 fine-thread bolts to secure the Seat Jackers to the vehicle floor.
  3. These factory bolts are used to fasten the Seat Jackers to the floor.
  4. Torque the factory bolts to 27 ft-lbs.

• Step 5 — Secure the Seat to the Seat Jackers

  1. Apply Blue Loctite to the provided M10-1.5 x 25mm bolts.
  2. Using a 15mm socket, install the provided bolts through the seat rails and into the Seat Jackers.
  3. Start the bolts by hand and tighten them finger tight only until the seat rails are properly aligned.

  IMPORTANT — SEAT RAIL ALIGNMENT
  If a seat rail does not line up with the Seat Jacker:

  1. Lift the seat rail approximately 1/4".
  2. Start the bolt by hand and thread it a couple of turns.
  3. If needed, adjust the seat rails independently until they are properly aligned.

  Do not force the bolts or cross-thread the hardware.

• Step 6 — Torque All Four Bolts

  Once everything is properly aligned and installed:

  • Torque the two front bolts to 27ft-lbs.
  • Torque the two rear factory bolts to 27ft-lbs.

Final Check

Before operating the vehicle, verify that:

• All four seat mounting bolts are properly torqued.
• The Seat Jackers are fully seated.
• The roll pins are properly engaged in the floor holes.
• The seat is securely mounted and does not move independently of the vehicle.
