RAM Rear Seat Jackers 2002-2018 RAM 1500 2002–2025 RAM 2500/3500 2019-2024 RAM 1500 Classic

INSTALL INFO

FITS

2002-2018 RAM 1500
2002–2025 RAM 2500/3500
2019-2024 RAM 1500 Classic

DIFFICULTY

Tools Needed

18mm and 16mm Socket and ratchet
Torque Wrench

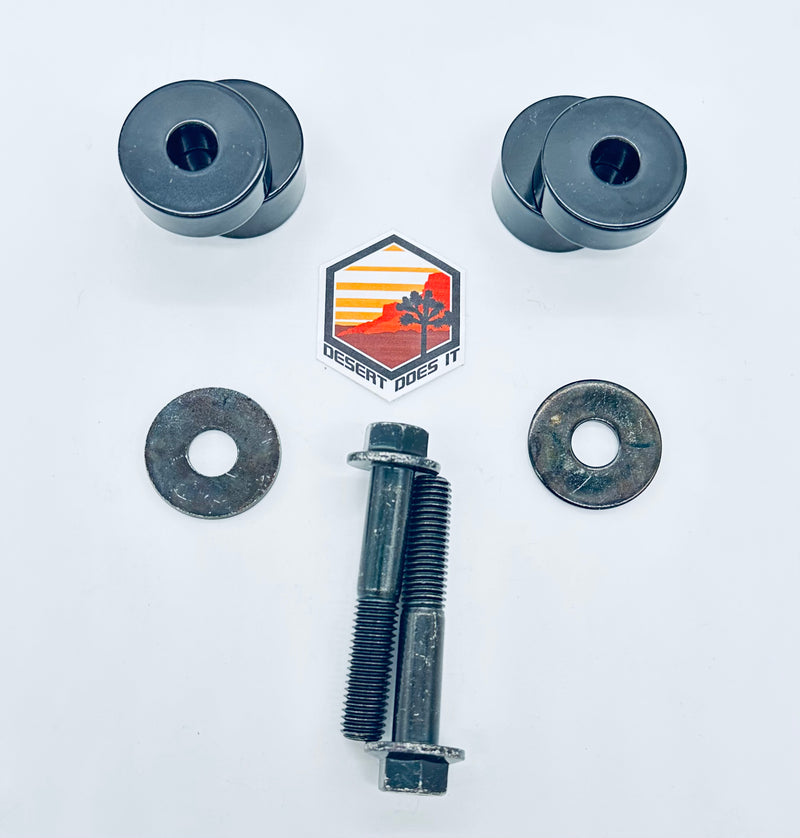

Included Parts

2 - M12 1.75 x 60mm - Flange Bolt
2 - .5 Inch Shims,
2 - .75 Inch Shims
Blue Loctite

IMPORTANT NOTES

Desert Does It will not be liable for any loss, damage, or injury directly or indirectly from the use or the inability to determine the use of these products. Before using or installing, the user shall determine the suitability of the products for its intended use, and the user shall assume all responsibility and risk in connection therewith. Any modifications to your vehicle are done at your own risk.

INSTALLATION INSTRUCTIONS

General Note: To help prevent cross threading during installation, we recommend verifying bolts and threads by taking the applicable bolts and threading them in by hand to the corresponding hole and remember to use Blue Loctite on all hardware.

Installation Instructions:

Step One: If applicable, remove any plastic trim at the feet of your seat. Remove both rear factory seat base bolts (18mm socket) and loosen the two front seat bolts but do not remove them.

Step Two: From the back seat, lift the rear of the front seat by pushing forward on the headrest or by asking a helper to pull from the front.

Step Three: Place desired number of spacers under the rear of the seat, in between the seat rails and the floor. If installing the .5” spacer use your factory bolt. If using the .75” or both, use the provided 70mm Flange bolt and washer.

Step Four: Take the two provided bolts and thread them through the seat rail, through the Rear Seat Jackers shim(s), and into the floor. Hand tighten the bolt with a 16mm socket. IMPORTANT – IF THE SEAT RAIL HOLES DO NOT LINE UP, LIFT UP THE SEAT RAIL .25 INCHES AND THREAD IN THE BOLT A COUPLE OF THREADS. IF NEEDED ADJUST THE SEAT RAILS ONE AT A TIME TO GET THEM TO LINE UP.

Step Five: Torque front bolts to 25ft-lbs and rear bolts to 75ft lbs.

Check bolt torque at regular intervals and don’t forget to post a review.
