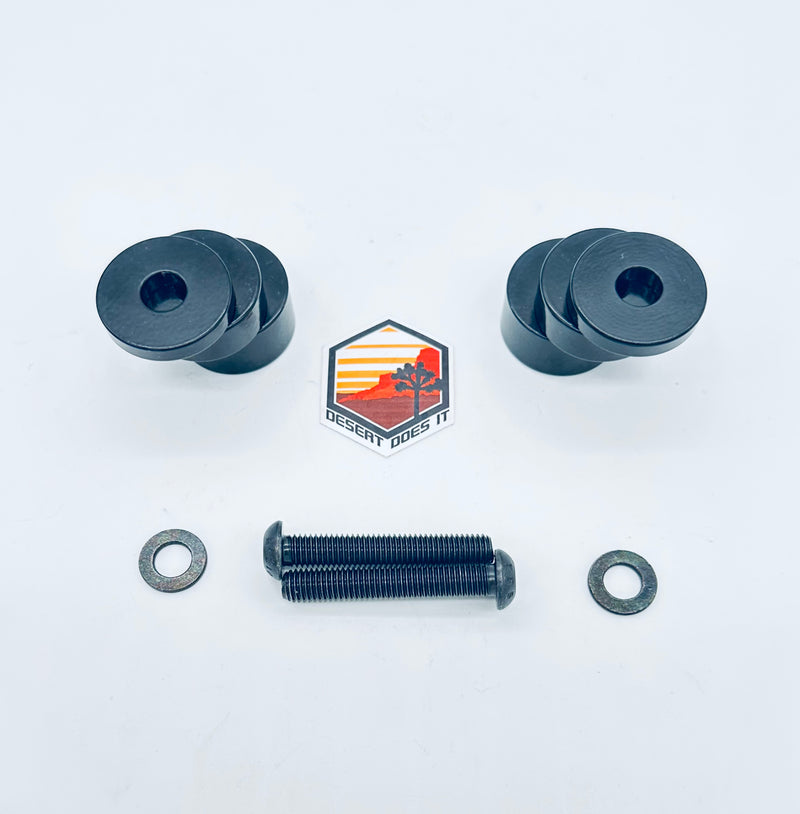

Jeep Adjustable Rear Seat Jackers (2018+ Wrangler JL/JLU / 2020+ Gladiator JT) — Install Guide

Important Note

To help prevent cross-threading during installation, always verify bolts and threads before installation. Thread each applicable bolt into its corresponding hole by hand to ensure proper fit. Do not force.

Step One — Remove Rear Bolts

Remove both rear factory seat base bolts. Loosen the front seat bolts as much as 1/2 inch to allow the seat to lift.

Depending on your vehicle, the bolts may require a T50 Torx or E12/E14 E-Torx.

Step Two — Select Lift Height

Seat Jackers are adjustable from 1/4 inch to 1.5 inches. Select the desired lift height and slide the Seat Jackers under the rear seat legs.

Step Three — Install Seat Jackers

Apply Blue Loctite to the provided 60mm cap-head bolts.

Place the provided washers on the bolts, then insert the bolts through the seat legs and Seat Jackers. Thread each bolt into the vehicle floor by hand to get it started.

Once properly aligned, torque the bolts to 35 ft-lbs.

Step Four — Torque Front Seat Bolts

Retighten the front seat bolts and torque all seat bolts to 35ft-lbs.

Final Check

• Verify all seat bolts are properly installed and torqued to 35ft-lbs.
• Confirm the Seat Jackers are seated correctly under the rear seat legs.
• Verify the seat is secure before use.

Desertdoesit.com - Check bolt torque at regular intervals and don’t forget to post a review.
