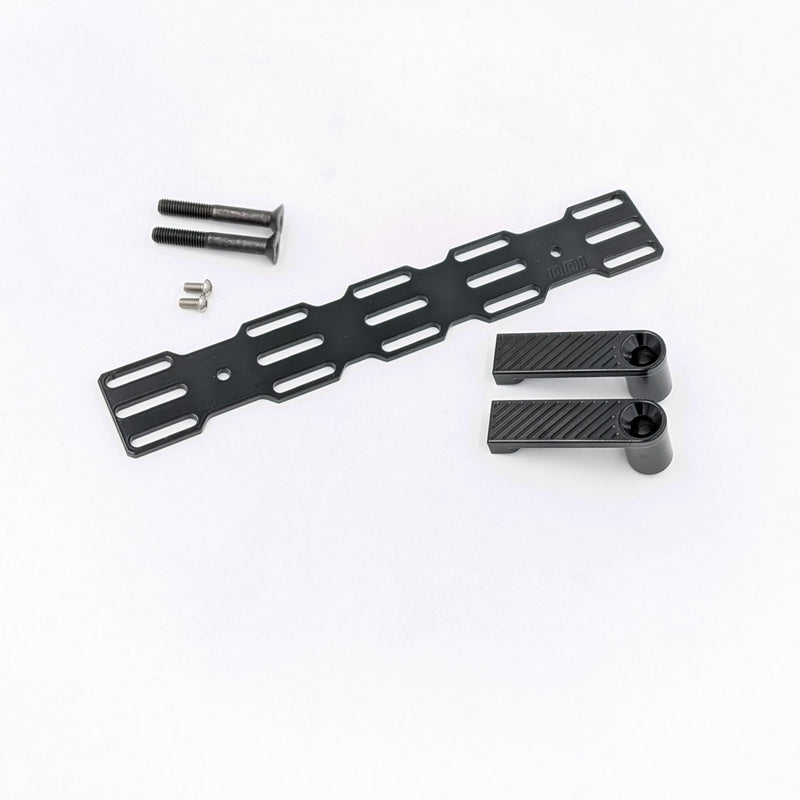

Ford Multi Mount Panel (2021+ Bronco / 2019+ Ranger) — Install Guide

Important Note

To help prevent cross-threading during installation, verify the bolts and threads by taking the applicable bolts and threading them into the corresponding holes by hand. Do not force the bolts.

Step 1 — Remove Seat Trim

1. When applicable, remove the bolt trim pieces at the seat base using a pry tool or screwdriver.

Step 2 — Remove Factory Bolts

1. Slide the seat all the way back.
2. Remove both front factory seat base bolts. Refer to the Tools Needed section above.

Step 3 — Modify Plastic Trim (Optional)

1. If desired, use a step bit or 1" hole saw to drill holes in the plastic trim to allow the MMP brackets to pass through.

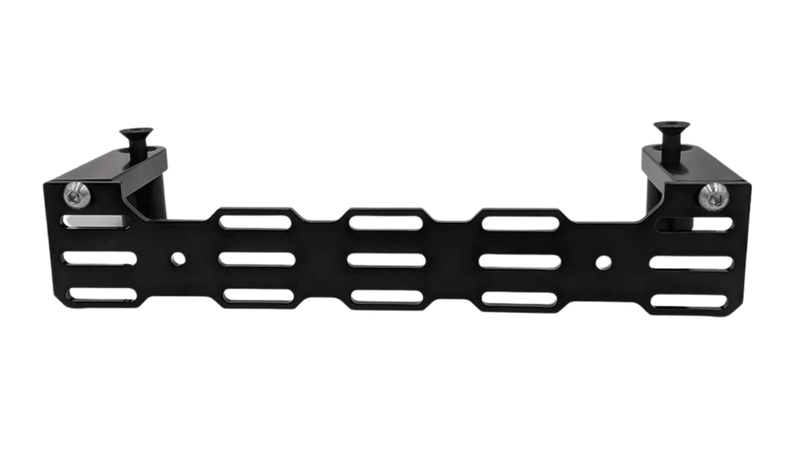

Step 4 — Attach the Panel to the MMP Brackets

1. Using the provided stainless steel hardware, loosely mount the panel to the MMP brackets.
2. Make sure the tabs on the brackets are facing outward so the brackets hug the legs at the seat base.
3. Reference the pictures on the product listing for an example of the installed MMP.

Step 5 — Install the MMP Brackets

1. Apply Blue Loctite to the two new black flathead bolts.
2. Thread the black flathead bolts through each MMP bracket, through the seat rail, and into the threaded holes in the floor.
3. Hand-tighten the black flathead bolts only at this time.

Step 6 — Align and Torque

1. Align the panel as desired.
2. Torque the two black flathead bolts to 30ft-lbs.
3. Torque the two stainless steel flathead bolts to 10ft-lbs.

Final Check

• Confirm the MMP brackets are properly positioned with the tabs facing outward.
• Confirm the panel is properly aligned.
• Confirm the two black flathead bolts are torqued to 30ft-lbs.
• Confirm the two stainless steel flathead bolts are torqued to 10ft-lbs.
• Confirm all applicable trim pieces have been reinstalled.

DesertDoesIt.com - Check bolt torque at regular intervals and don’t forget to post a review.
