Ford Bronco Dash MMP Installation 2021+ Ford Bronco — Install Guide

Important Note

To help prevent cross-threading during installation, verify bolts and threads by taking the applicable bolts and threading them into the corresponding holes by hand. Do not force the bolts.

Step 1 — Install the Standoff Mounts

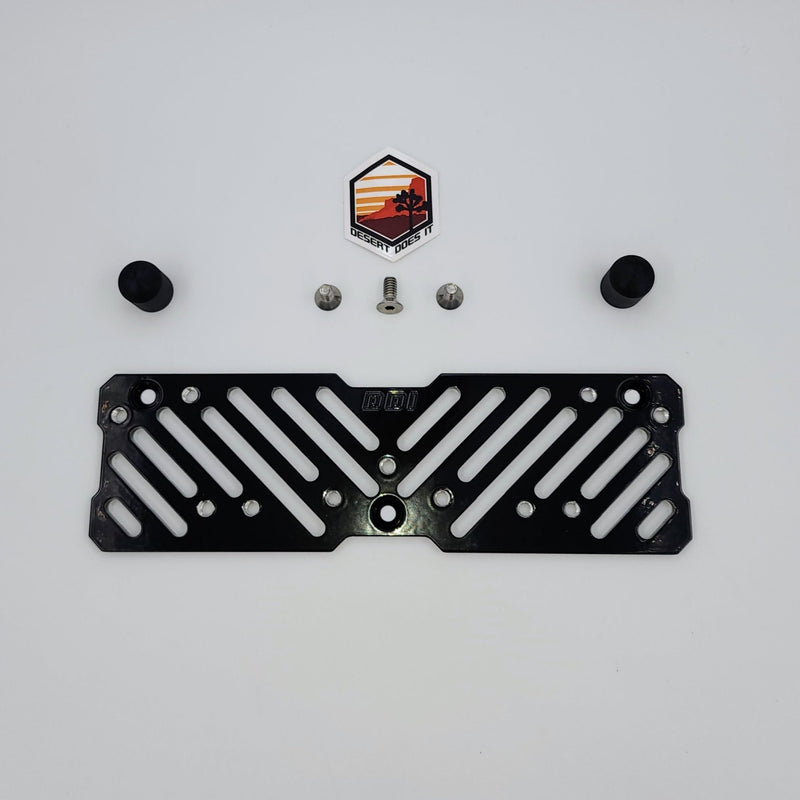

1. Take two of the provided stainless steel bolts and slide them through the two front countersunk corner holes in the panel.
2. Thread the two provided standoff mounts onto the bottom side of the panel, connecting them to the bolts.
3. While holding the standoffs in place, use an Allen key to tighten the bolts.

Step 2 — Attach the Panel to the Dash

1. Position the panel in the middle of the dash.
2. Using the third provided stainless steel bolt, attach the panel to the dash through the rear middle countersunk hole.
3. Hand-thread the bolt to get it started.
4. Use an Allen key to tighten the bolt securely.

Final Check

• Verify all three stainless steel bolts are properly installed and tightened.
• Confirm the two standoff mounts are securely attached to the panel.
• Confirm the panel is securely mounted in the center of the dash.

DesertDoesIt.com - Check bolt torque at regular intervals and don’t forget to post a review.
