Angled Mount Bracket / Clockable Extension Instructions — Install Guide
- Universal fit
Fits
- Universal fit

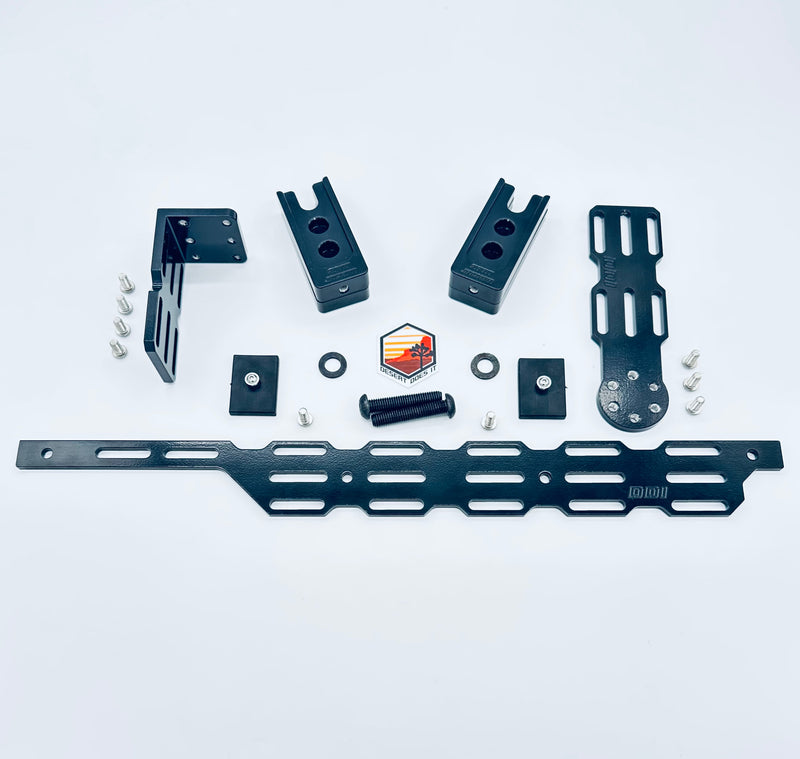

Included Parts
- 1xAngle Bracket
- 1xAngled Bracket (sku 9104)
- 4xM6 x 12mm - Button head - SS
- 1xClockable Extension
- 1xClockable Extension
- 2xM8 x 12mm - Button head - SS
Tools Needed
- 5mm Allen Key or Socket
- Blue Loctite
Installation Difficulty
2 of 5
Installation Instructions
Important Note
To help prevent cross-threading during installation, verify the bolts and threads by taking the applicable bolts and threading them into the corresponding holes by hand. Do not force the bolts.
Step 1 — Choose Mounting Location
- Find the desired location on the MMP to mount the Angle Bracket or Clockable Extension.
Step 2 — Install the Angle Bracket or Clockable Extension
Angle Bracket
- Using the provided hardware, attach the Angle Bracket at the desired location.
- Thread the provided button head hardware through the MMP and into the Angle Bracket.
Clockable Extension
- Using the provided hardware, attach the Clockable Extension at the desired location on your MMP or Angle Bracket.
- Thread the provided button head hardware through the Angle Bracket or MMP and into the Clockable Extension.
Final Check
• Confirm the Angle Bracket or Clockable Extension is mounted in the desired location.
• Confirm all hardware is properly installed and securely tightened.
• Verify all bolts were started by hand to prevent cross-threading.
DesertDoesIt.com - Check bolt torque at regular intervals and don’t forget to post a review.
